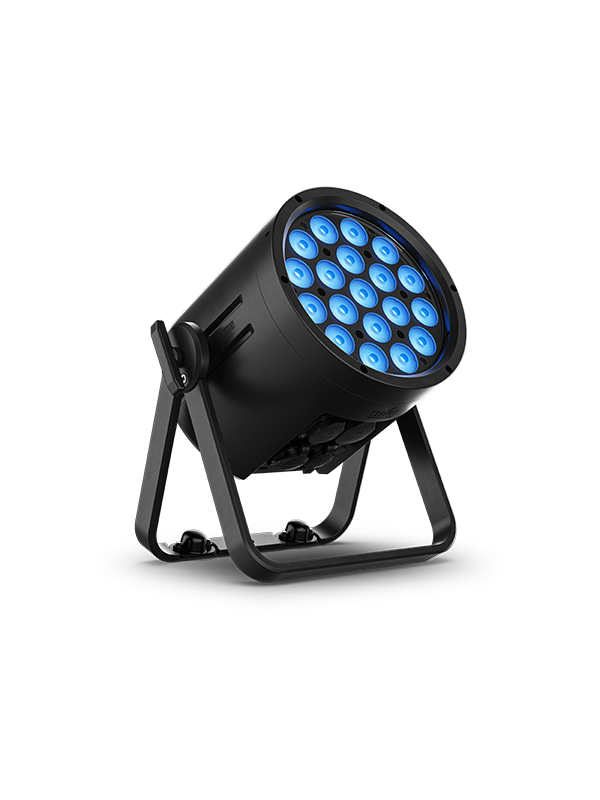

WELL POD 3

WELL POD 3 is a fully-accessorized addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.



SPECIFICATIONS

ELECTRICAL

  • Single Unit

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking: 20 units @ 120 V; 34 units @ 208 V; 37 units @ 230 V;

  • Power and Current: 72 W, 0.60 A @ 120 V, 60 Hz

  • Power and Current: 70 W, 0.35 A @ 208 V, 60 Hz

  • Power and Current: 70 W, 0.32 A @ 230 V, 50 Hz

  • 4 Pack Case

  • Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V;

  • Power and Current: 135 W, 2.02 A @ 120 V, 60 Hz

  • Power and Current: 134 W, 1.45 A @ 208 V, 60 Hz

  • Power and Current: 135 W, 1.33 A @ 230 V, 50 Hz

  • 4 Pack case fuse: T5A, 250V

BATTERY

  • Battery type: Lithium Ion

  • Rechargeable: Yes

  • Battery Charge Time: 2.53 hours

  • Battery Life: 3hr, 5hr, 8hr, 12hr

  • Battery Power: 25.9V, 6.6 Ah

CONSTRUCTION / PHYSICAL

  • Dimensions: 9.76 x 7 x 10.86 in (248 x 178 x 276 mm)

  • Dimensions (w/o bracket): 9.76 x 7 x 7 in (248 x 178 x 178 mm)

  • Dimensions case: 27 x 25.6 x 15 in (685 x 650 x 380 mm)

  • Weight: 11.2 lbs (5.1 kg)

  • Exterior Color: Black

  • Housing Material: Aluminum die-cast

CONNECTIONS

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65

  • Power Input (fixture and charging case): Seetronic Powerkon IP65

  • Power Output(fixture and charging case): Seetronic Powerkon IP65

  • Data Connectors: 5-pin XLR

  • Cable Length (power): 5 ft (1.5 m)

  • Software Connection: USB-C

CERTIFICATIONS / QUALIFICATIONS

  • CE, UKCA, FCC, ROHS

  • IP Rating: IP65, temporary outdoor/wet use

  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
